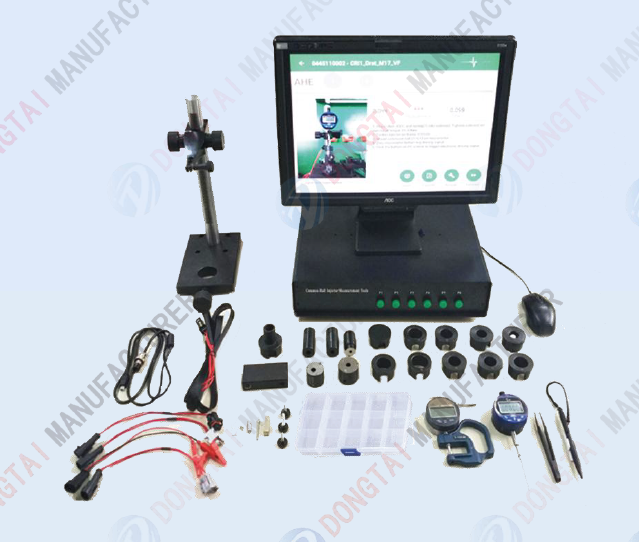

CRM1000-B Common Rail Injector Stroke Measuring System
CRM1000-B Common Rail Injector stroke measuring system, which includes almost all common rail injectors stroke measuring standard data inside. Suitable for BOSCH, CAT, DENSO, DELPHI, SIEMENS injectors and so on .
It can test:
1. Adjust Needle Lift
2. Adjust Needle Opening Pressure
3. Adjust Total Lift of Armature Assembly
4. Adjust Actual Lift of Armature Assembly
5. Adjust Solenoid Air Gap
6. Adjust Solenoid Spring Compression
7. Driving Armature
Common Rail Injector Repair Stage 3 Rebuild Injector after Component Being Replaced:
Injector Critical dimensions are accurately controlled by using the calibration shims or spacers of exact thicknesses in the injector during injector rebuild to meet Bosch spec tolerance of 1um.
1:Intuitive, step-by-step instruction to direct user to rebuild injector
lMeasure thickness of calibration shims
lMeasure dimension of injector components
lProvide the required thickness of calibration shims
2:Complete database to cover Bosch common rail injectors
lCRI 1, CRI 2, CRI 3 for Automotive engine
lCRIN 1, CRIN 2 for Commercial vehicle engine
